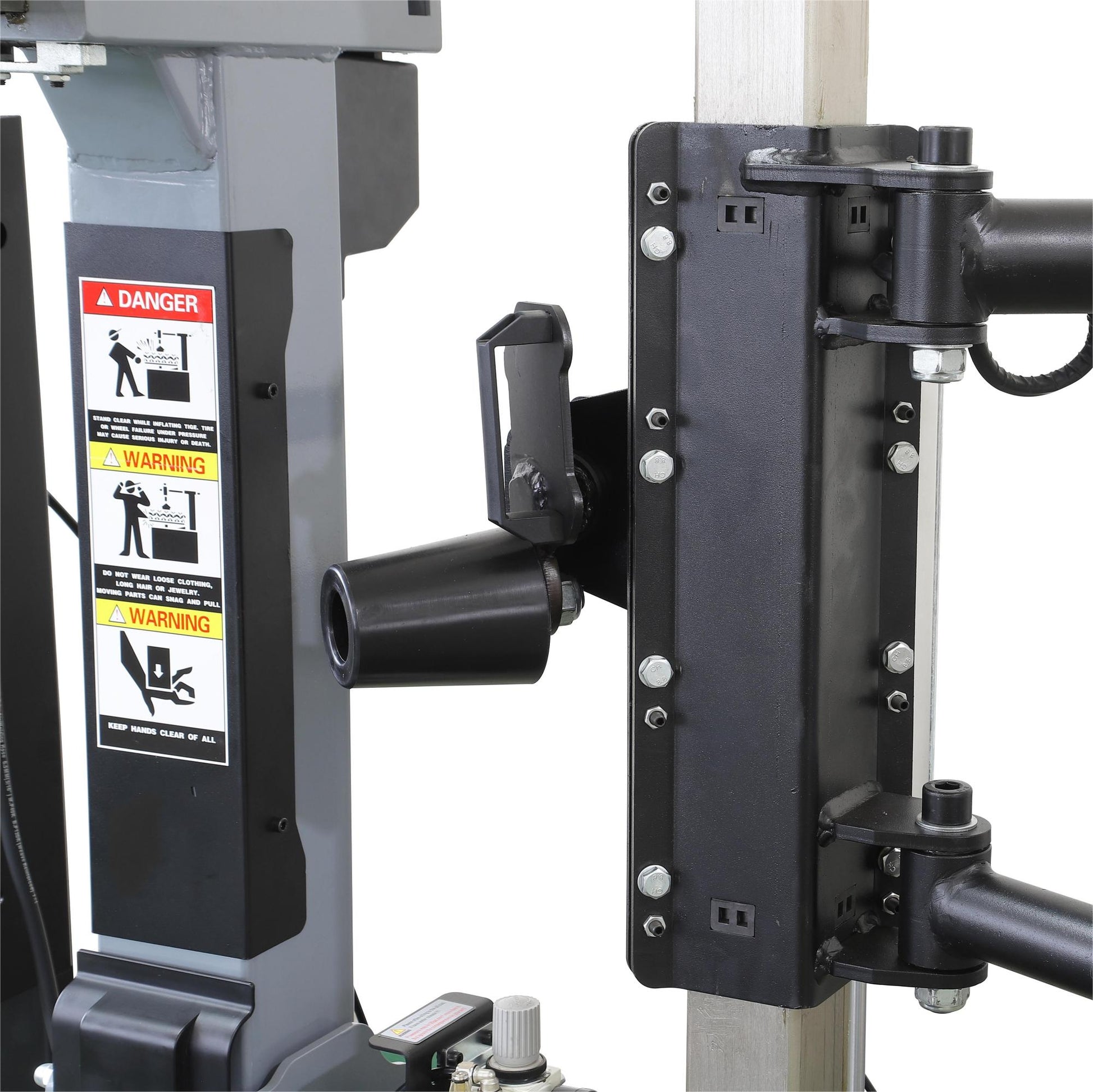

Equipped mechanical assist arm makes tire changing much more effortless.
Rim clamping outside 10"-22" / Rim clamping inside 12"-24".
Maximum Tire Diameter of 1000mm / Maximum tire width 14".
Product Dimensions: 1870×1600×1450mm, net weight: 660 lbs.
Power supply : The default voltage is 110~120V. If you need to change it to 220~240V, please inform us when placing an order. Air operated working pressure : 8-10bar.
Product Features:
1. Optional automatic tilting bird head.
2. Advanced robotic arm; the trolley section uses a modular design with embedded wear-resistant sliders and precision-ground square tubing, ensuring smooth and stable operation.
3. All joints of the auxiliary arm are mounted with conical bearings, ensuring smooth and seamless operation without jamming.
4. Thickened work plate, precision cast steel claws, non-slip and durable claw protective sleeves, and high-quality all-aluminum small cylinders.
5. Shovel-shaped structure, thickened shovel arm body, omnidirectional large shovel, high-quality large shovel protective sleeve, and non-slip rubber plate.
6. All-aluminum alloy large cylinders reduce machine vibration and friction, thereby extending cylinder lifespan.
7. Dedicated explosion-proof oil mist lubricator with excellent pressure resistance and a high safety factor.
