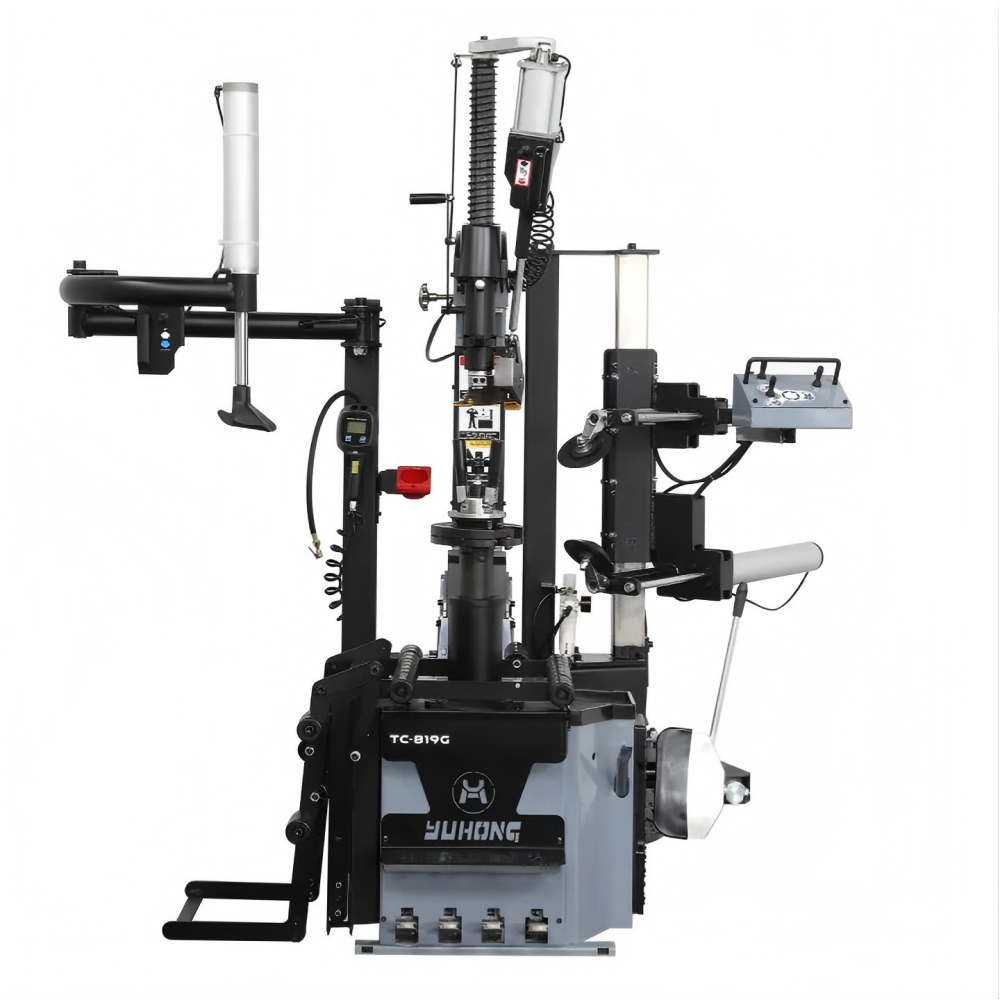

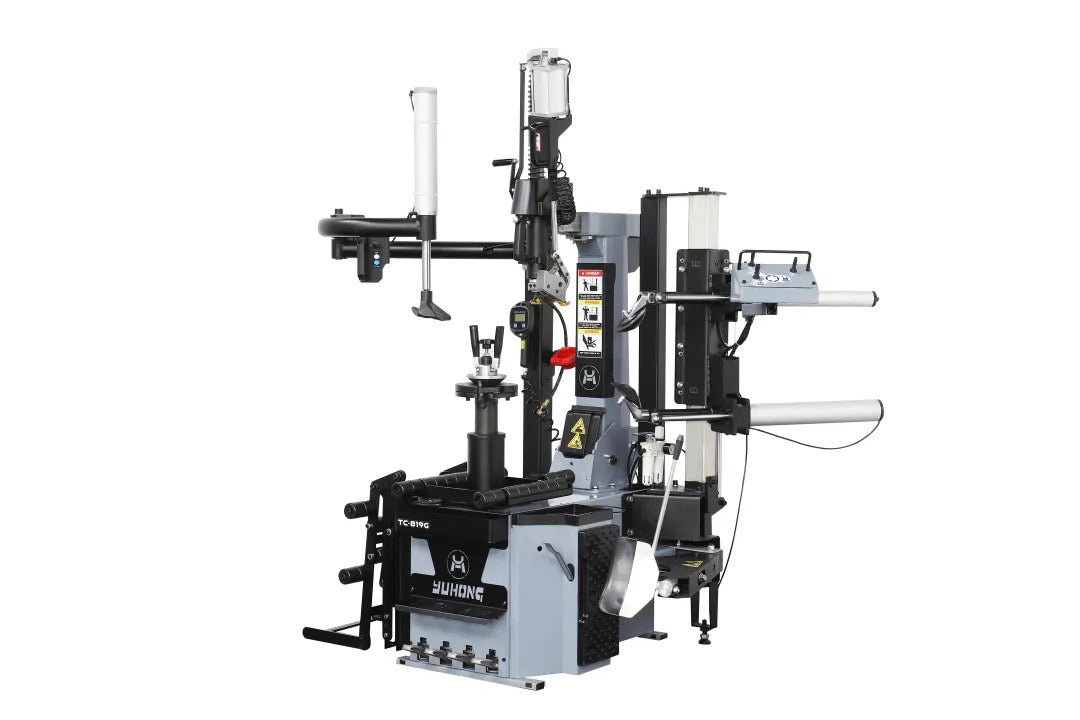

RebarTech Tire Changer Model 819G

Characteristic introduction

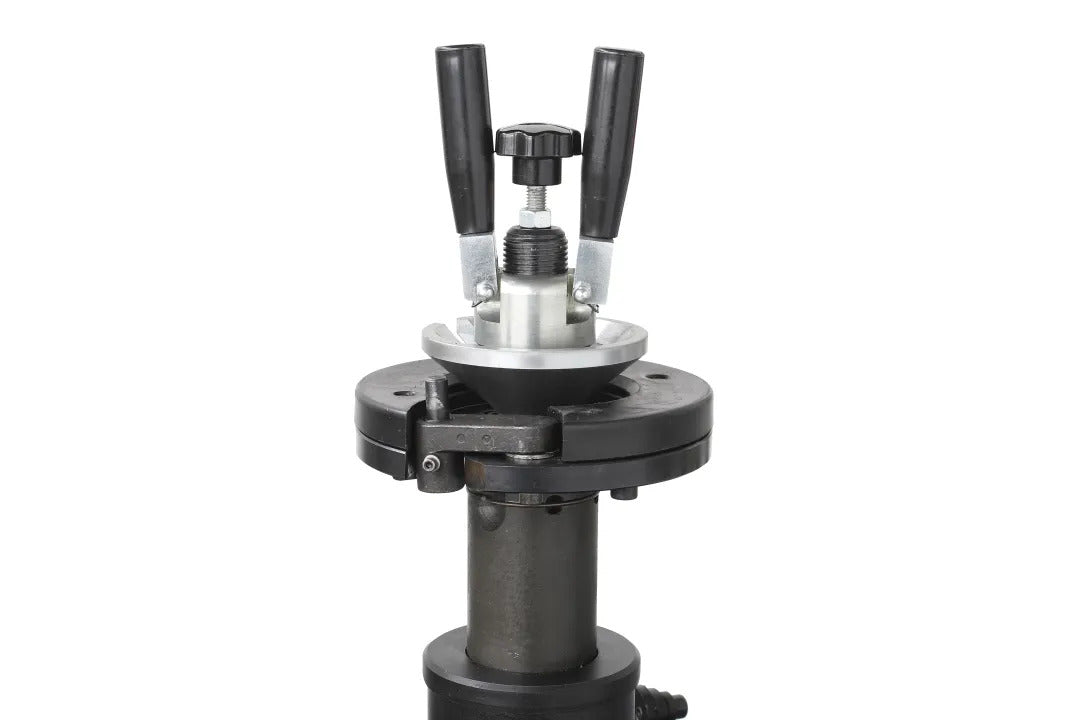

1.No disc locking structure, patented design, matching alloy steel fast nuts, quick locking without injury rim.

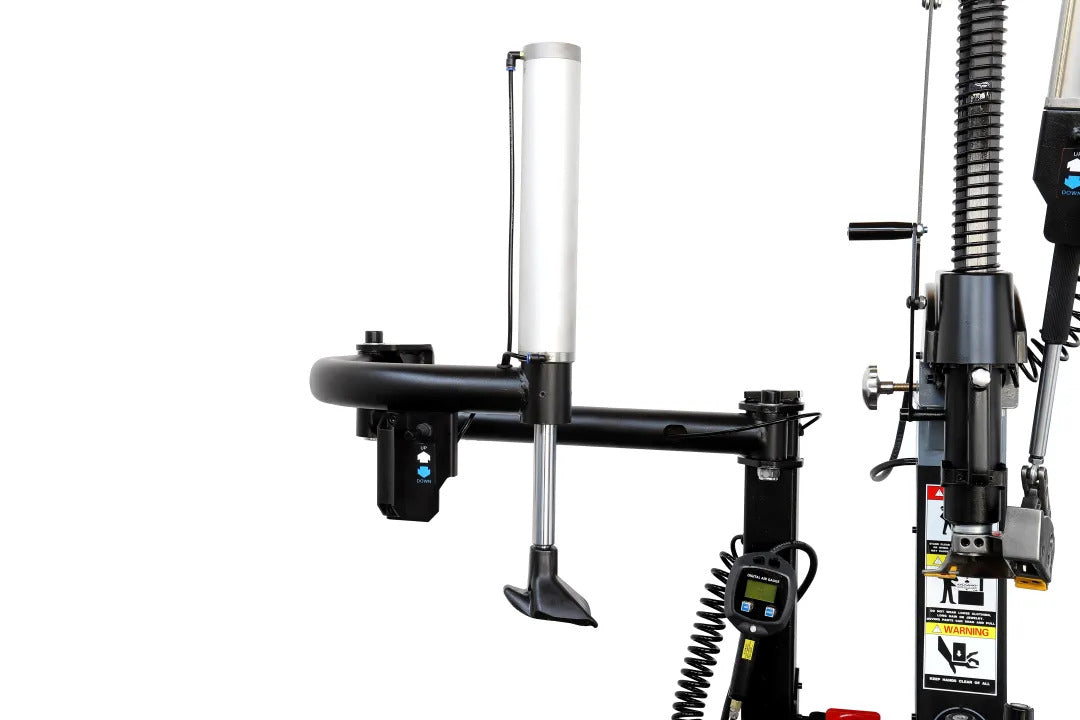

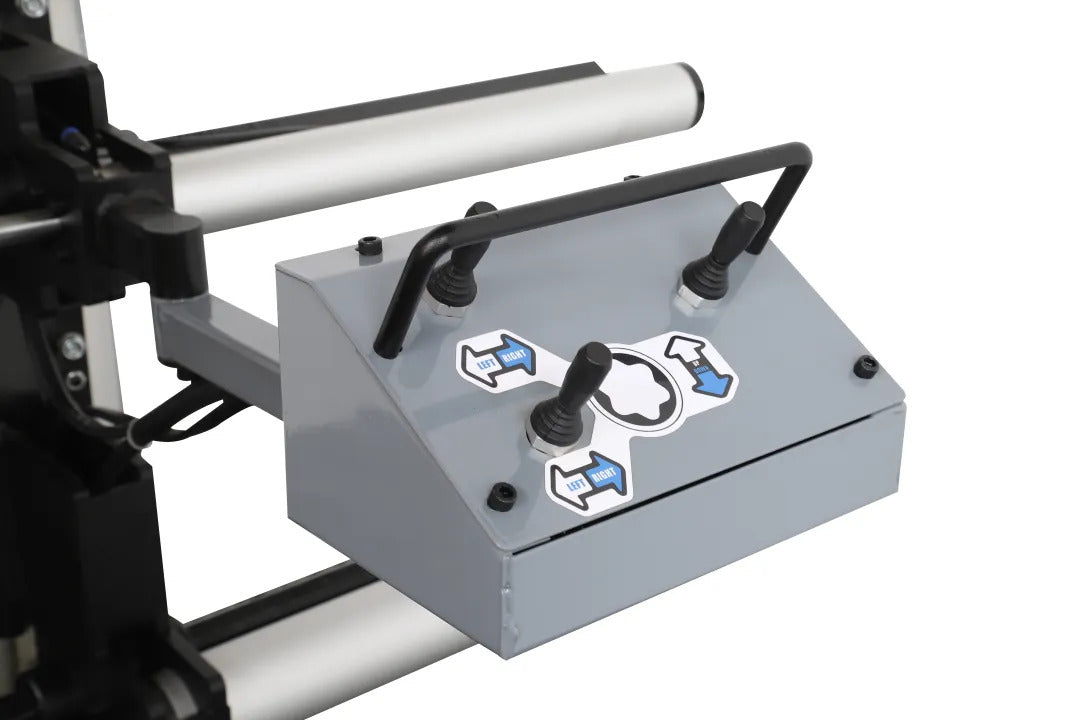

2.The new upgraded G assistant, the upper and lower thick cylinder with the control platform, convenient and fast.

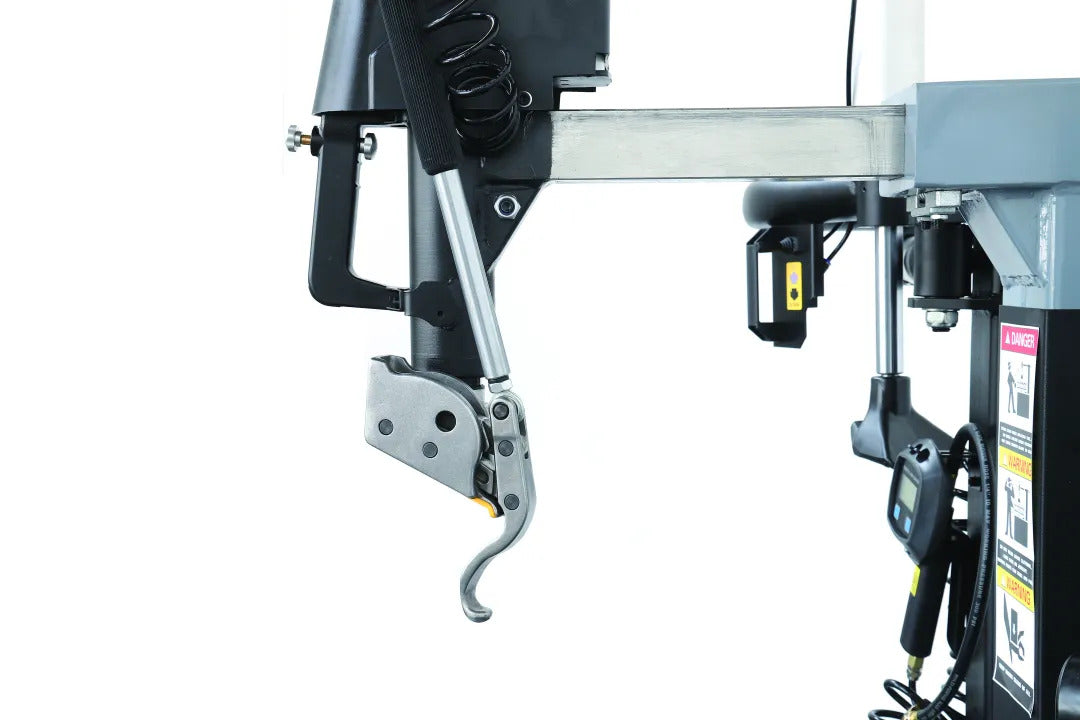

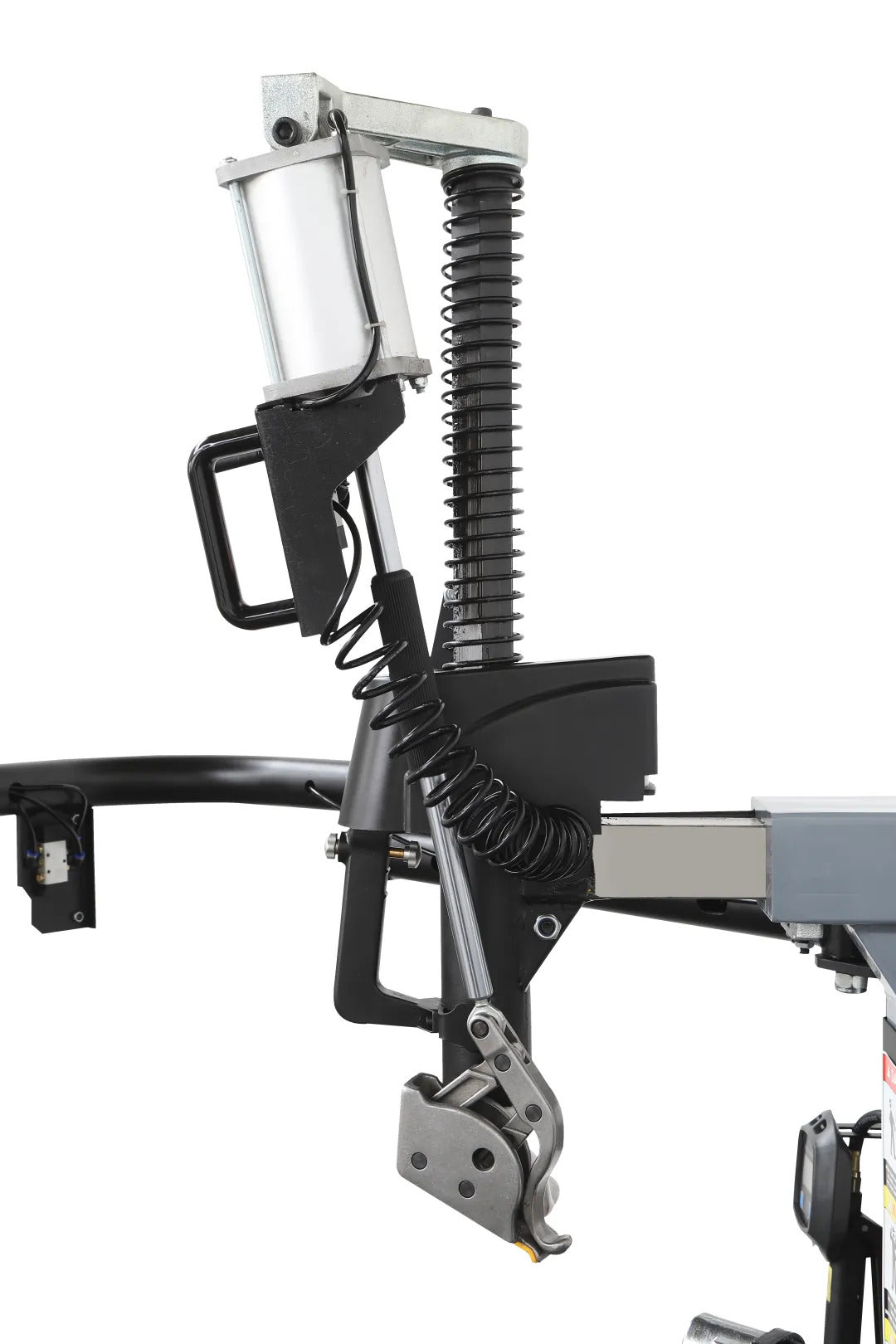

3.The new flip of the tire head, eliminating the crowbar, disassembly and assembly of hard wall flat tire is more time-saving, labor-saving.

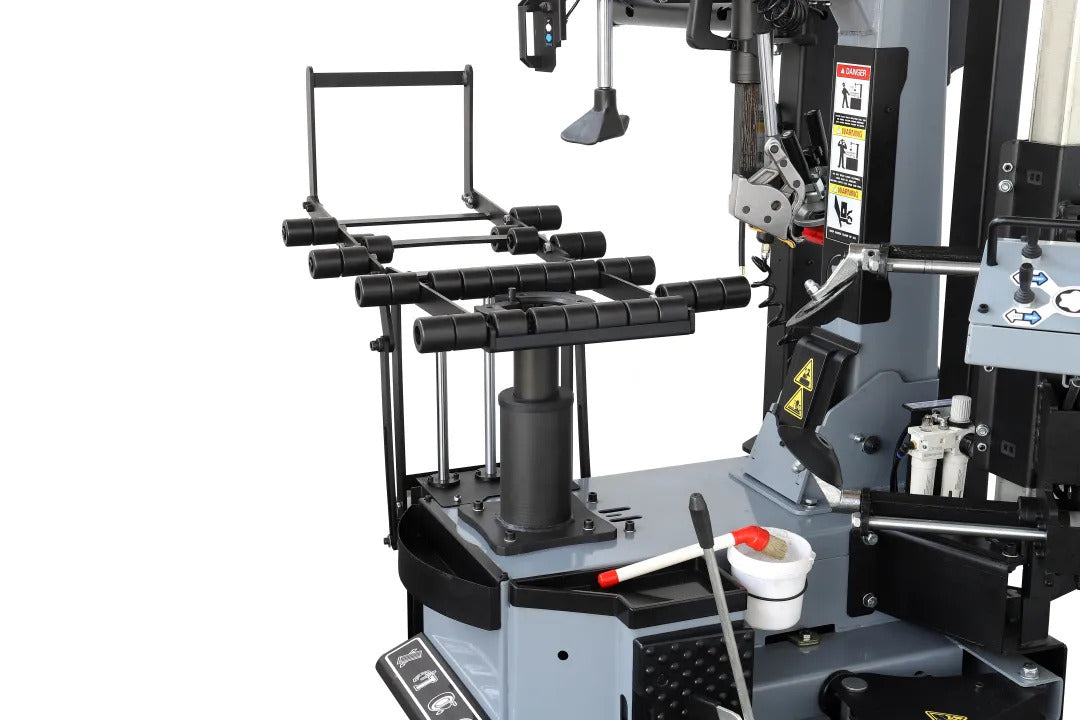

4.Using the whole automatic tire turning frame structure, the sliding roller auxiliary tire is easily delivered.

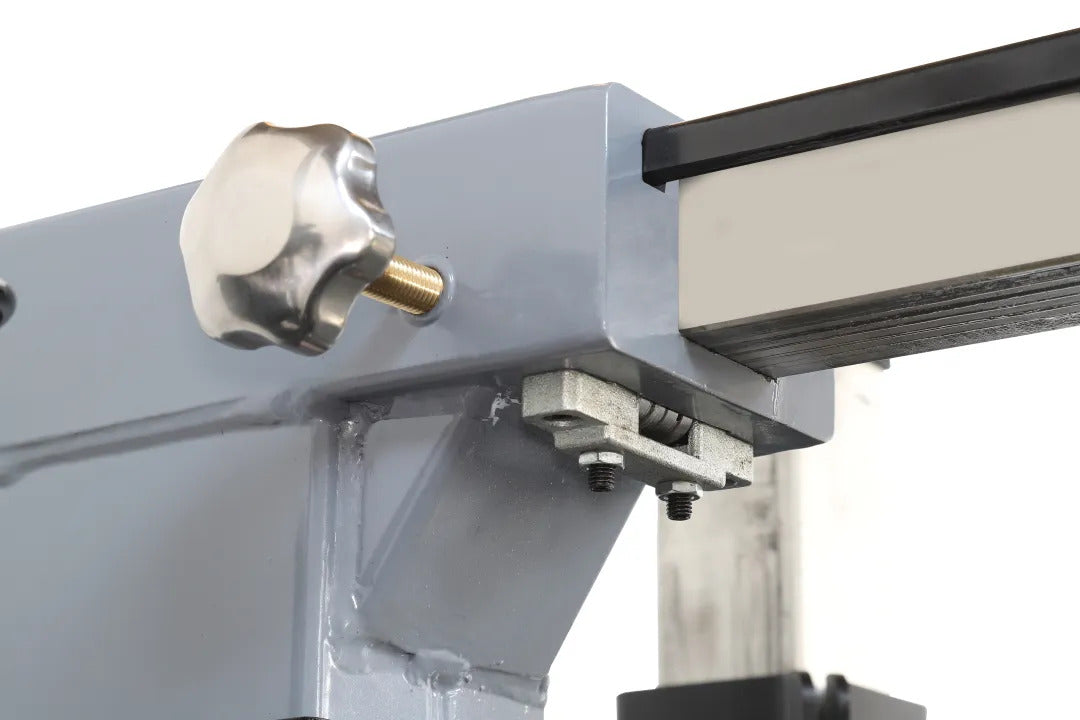

5.Advanced mechanical arm, the pulley part of the form of a set, embedded wear-resistant sliding block, with fine grinding square tube, so that the mechanical arm can run smoothly and freely.
6.Metal six-bar handle, through the golden ratio to make the six-bar down process convenient, labor-saving.

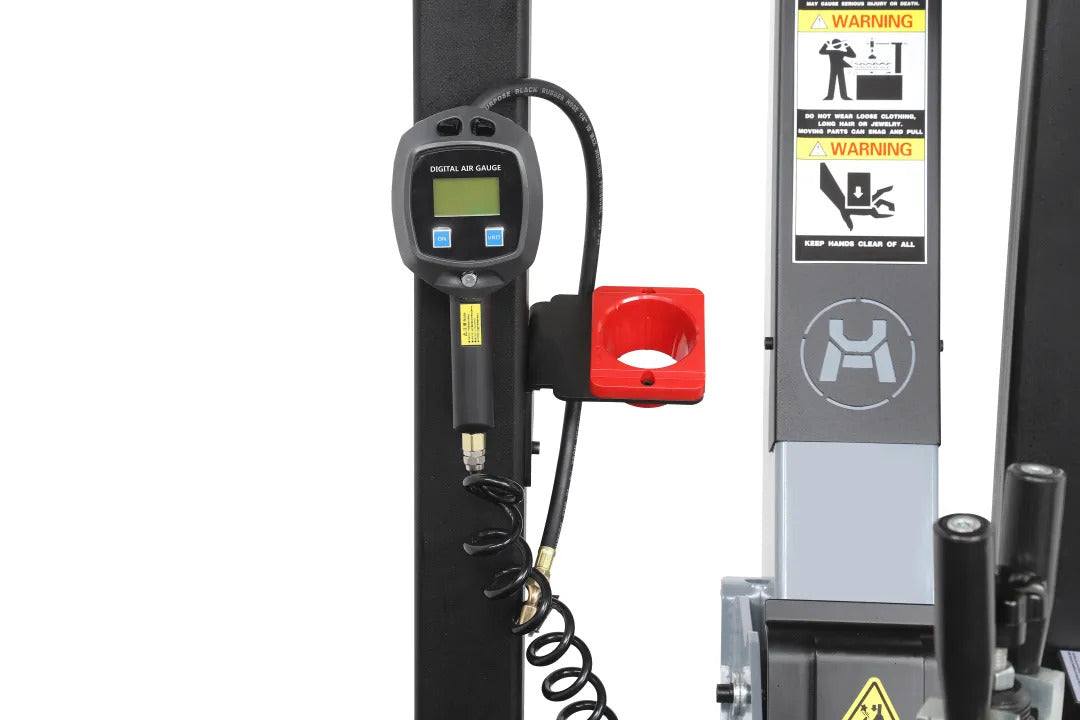

7.Automatic inflation table, using high-end inflation meter, inlet chip, preset tire pressure inflation, full of automatic alarm, safe and efficient.
8.Advanced charging structure, large tire fast inflatable, safe and efficient; thickening charging tank, professional charging accessories.
9.Special explosion-proof grade oil mist device, good pressure resistance effect and high safety factor.

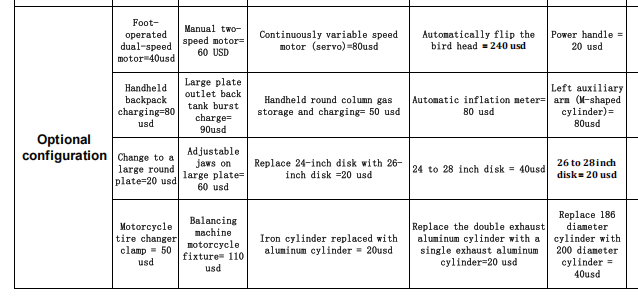

10.The reverse loading fixture is optional.
Parameter
（Applicable rim）：13＂-28＂
（Max wheeI diameter）：1160mm
（Max tire width）：14＂
（Working pressure）：8-10bar
（VoItage）：380V/220V/110V
（power）：1.1KW
（Machine size）：1780*1300*1990mm
（CompIete machine packing size）：1170*1100*1760mm
（Net weight/Gross weight）：375KG/430KG
