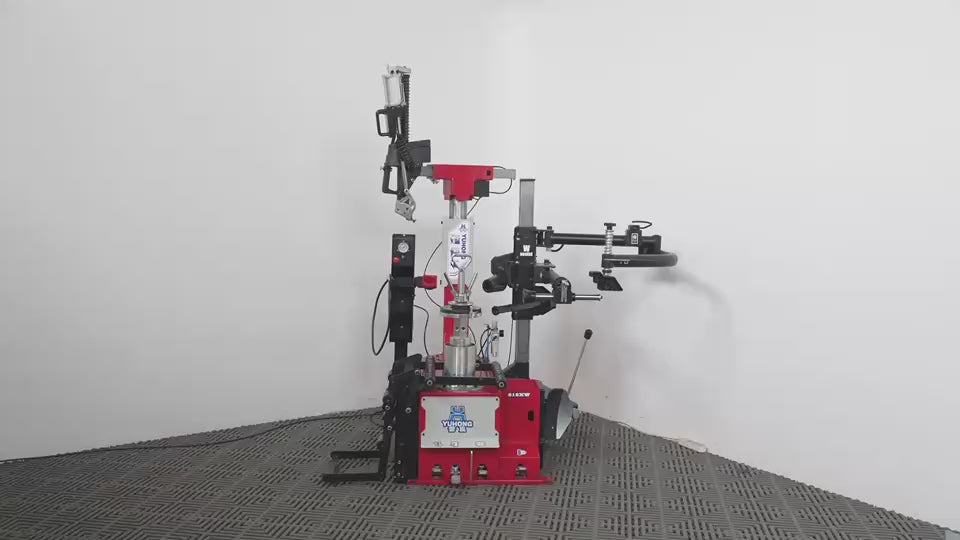

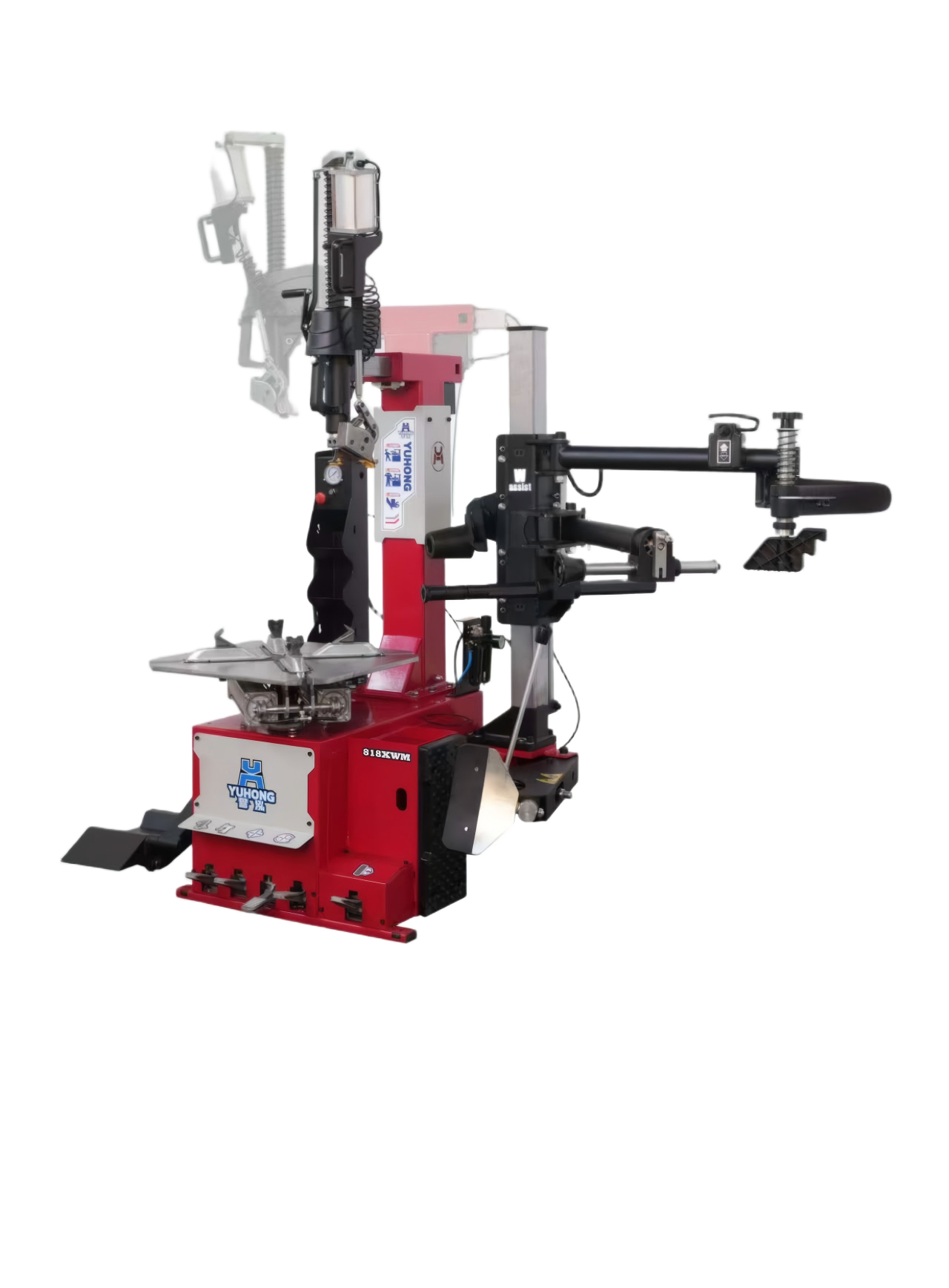

RebarTech Tire Changer Model 818 XWM

Characteristic introduction
1.The whole system adopts 1.1KW pure copper motor, which has high torque, low noise and is more durable without centrifugal switch.
2.All cylinder pistons are made of aluminum, no rubber pistons.
3.Thickened working disc, precision cast steel claw, high quality all aluminum small cylinder, locking strength.
4.Shovel tire structure, thickening shovel arm body, universal shovel.
5.The tire shovel system is powerful and works very fast.
6.All aluminum alloy large cylinder, can reduce machine vibration and reduce friction, thereby improving the service life of the cylinder.
7.Advanced mechanical arm, the pulley part adopts built-in wear-resistant sliding block, with fine grinding square tube, smooth, no shaking.
8. All joints of the auxiliary arm are installed with vertebral body bearings, smooth and      smooth without stalling.
9.The diameter of the hexagonal bar is increased from 41mm to 45mm, the diameter of the push-pull arm is increased from 50mm to 55mm, and the locking system is more stable.
Parameter
Rim cIamp from outside  12＂- 24＂
Rim cIamp from inside   14＂- 26＂
Max wheeI diameter    1120mm
Max tire width        14＂
Working pressure       8-10bar
VoItage               380V/220V/110V
power               1.1KW
Machine size          1800×1200×1910（2040）mm
CompIete machine packing size  1170×1100×1730mm
Net weight/Gross weight   390KG/440KG
